LiftPro EVO Incl 1-Piece Belt Rail 2.5m
- Description
- Features
- Additional Technical Information
- Downloads
Description
LiftPro EVO Incl 1-Piece Belt Rail 2.5m

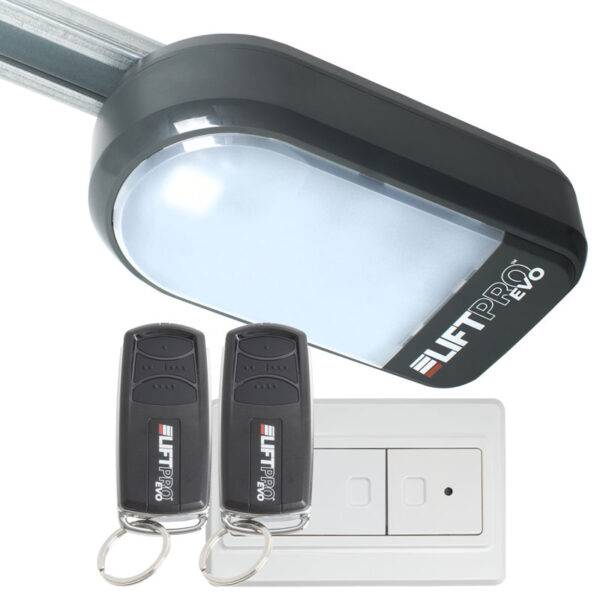

LiftPro EVO Garage Door Operator with a single piece 2.5m toothed belt rail.
868MHz, Rolling Code Technology. Comes with 2x 4-button Hand Transmitters and 2-button Wireless Wall Control.
- Powerful 750 N Motor
- Max Speed 200 mm/s
- Max Door Width 5000 mm
- Max Door Height 2300 mm
- Max Door Weight 125 Kg
- Max Door Surface 11.5 m²
- Soft Start and Stop
- Energy-efficient LED lighting
- Electronic Limit Switch for Easy Installation
- Space Saving Variability with 90° Head Rotation
- Automatic Force Adjustment
- Safety Return when Opening & Closing
- Automatic Locking of the Slide Mechanism
- Quick and Simple to Install
| Voltage IN | 230-240 V, 50/60 Hz |
|---|---|
| Motor voltage | 24V DC |
| Max pull force | 750 N |
| Speed | 200 mm per second |
| Operating temperature | -30°C to +55°C |
| Weight | 12 Kg |
| Stand-by power | 0.8 W |
| Drive type | Belt |
| Max door width | 5 m |
| Max door height | 2.3 m |
| Max door weight | 125 Kg |
| Max door area | 11.5 m² |
| Headroom required | Min. 35 mm |
| Lighting | LED 24v/15pcs |
| Radio | 433 MHz + 868 MHz |
| Memory registers | 180 |
| Soft-Start and Soft-Stop | Yes |
| Obstacle detection | Automatic |
| Force setting | Automatic |
| Noise level | 54dB |
| Over voltage protection | Transformer overload protection |
| Limit setting | Electronic |
| Warning light terminal | Included |
| Protection level | IP20 |
| Motor warranty | 5 years |
| Accessory warranty | 1 year |
