Marantec Digital 663 – Three Channel 868MHz Bi-Linked Mini Hand Transmitter
- 3 function buttons for free configuration
- 1 status button and LED indicator
- Electronic button lock programmable
- For all Marantec opener systems – series 200 models 260/270/280 and series 300 models 360/370/380 (and other’s opener systems in combination with the respective bi·linked receiver)
- In stock, ready to dispatch
Availability: In stock
Order Before 3pm for Next Day Delivery
Select Express Shipping at checkout
Description
Digital 663 – Bi-Linked 868MHz
Marantec D663 Mini 868Mhz 3 channel Bi-directional handset with 128bit encryption and rolling code technology.
3 command buttons + 1 status button and LED indicator.
Working with the current model openers. Comes with wall clip.
- Mini hand transmitter 3-channel
- 868MHz
- Mini hand transmitter 3-channel
- 3 V button cell. CR 2032
- Impulse for door Open/door Close
- For all Marantec operator systems (series 200 models 260/270/280 and series 300 models 360/370/380) and operator systems from other manufacturers (In combination with the respective bi·linked Digital receiver)
- To control maximum three operator systems
- Nominal voltage: 3 V button cell. CR 2032
- Range of temperature: -20ºC to +60ºC
- Operation control: LED
Downloads
Uses
Reviews
Features
Marantec bi·linked radio technology:
Safe. Simple. Clever.

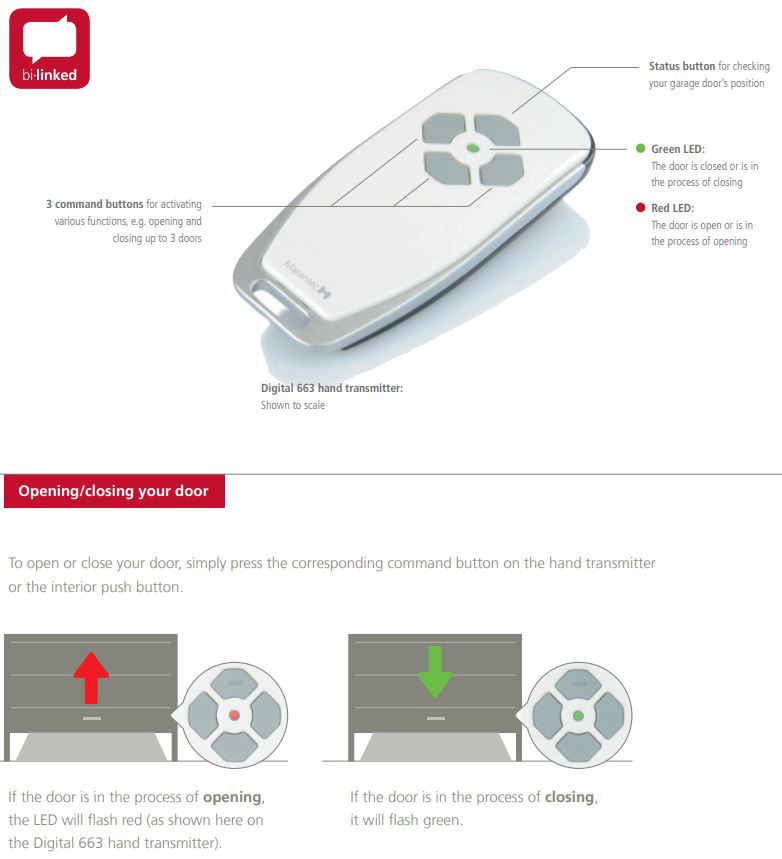

Efficient – bi.linkedBi·linked reliably opens and closes your doors at the push of a button. It can also communicate with you. By simple pressing the status button, bi·linked will let you know with its LED indicator whether your door is open or closed – whenever you are out of sight. Bi·linked is available as uni-directional and bi-directional version, i.e. with and without communication. |
Straightforward – bi·linkedThanks to the fact that bi·linked is wireless, there is no need for any cables between the individual devices. It also means that you can fit your accessories wherever they are most convenient for you and upgrade them at any time if your needs change. All of the current Marantec garage door openers can communicate with our bi·linked accessories. |
Secure – bi·linkedNext to comfort, security is always top of Marantec’s list. This is why the wireless bi·linked radio technology works with 128-bit encryption, which is the same key as is used in online banking. At the same time, it also uses a rolling code, which means that it transmits a different code to the opener every time the opening button is pressed, which makes it near impossible for the code to be copied or decoded. The transmitter is also highly resistant to interference and does not interfere with other wireless devices nearby. |
Modern – bi·linkedThe Marantec Digital 633 bi·linked hand transmitter is not only extremely safe and comfortable to use, but is also a very sophisticated design object. A winner of the highly renowned international |
Installation
1. Installation
This light can be fixed underneath an overhang such as a windowsill, above a garage door or fixed directly to a wall. The clips can be fixed vertically or horizontally as shown.
  |
 |
 |
 |
Screw the 2 mounting clips about 40cm apart to the wall (or overhang) with the supplied screws. The distance between the clips isn’t critical as they can fit on anywhere along the length of the aluminium part of the light.
If you want to hide the cable you might need to drill a 10mm hole through the wall or ceiling near one end of the light, pass the power cable through the hole. Alternatively if the light is going under a windowsill you can simply feed the cable through a window – it’s low voltage so no risk in doing this.
To mount the light simply fit one edge into the top or bottom of the clips then twist it round until it clicks into place. Connect the cable to the power supply and plug it into an indoor wall socket.
2. Operation
The Night Sabre security light has a flashing red LED to let you know it’s powered on and ready. The floodlight will only come on when it is dark and the PIR sensor detects motion.
The motion sensor covers an area very similar to the illuminated area – about 90° vertically and 120° horizontally, so as long as the light has been installed correctly the sensor will be aimed in the right direction automatically.
This light uses the latest in digital sensing technology, there are no adjustments necessary, just install, connect to the power and you’re done!
 |
 |
3. Trouble Shooting
No flashing red LED:
1) Check that the plug in power adapter is plugged in to a working wall socket that is turned on
2) Check that the in-line power connector to the light is pushed in securely
3) Make sure the power cable has not been damaged during the installation
Light not turning on:
1) Check that the red LED is flashing – so we know the light is powered and ready
2) Is it dark enough? The light only works when the light level falls below 20 lux – this is night time but perhaps there is another light source that is affecting the sensor?
3) Is the motion sensor able to see the movement – is there anything blocking the sensor that might prevent it from detecting human movement? Try waving your hand directly in front of the light when it’s dark
Light stays on or is on most of the time at night:
1) There is a built in 60 second dwell time, the light will stay on for 1 minute after seeing movement – is there something that is constantly moving in front of the sensor?
2) Are there other heat sources moving within 9m of the light? A hot air vent, road traffic or some other moving object that could be triggering the sensor?
4. Maintenance
The Night Sabre light uses very efficient LEDs that are designed to last for more than 30,000 hours – that’s almost 20 years of an average of 4 hours every night. So there are no bulbs to replace.
Like any light you will get the best performance if it’s clean, the motion sensor lens should also be kept clean and free of cobwebs or dust – so use a damp cloth to wipe the front of the light down every so often.
5. Extension Cable
If the power outlet is too far away from where you want to install the light you can buy a 2m extension cable (use up to 2 extension cables between the PSU and Night Sabre light.) – product code DS-2MC, SKU SEC3002.
