Fischer Chemical Anchor Injection Mortar

Fischer injection mortar

Fischer Chemical Anchor Injection Mortar

  • Chemical Anchoring
  • Includes – 1 cartridge 410 ml, 2 x FIS MR Plus

Available

  • Description
  • Application

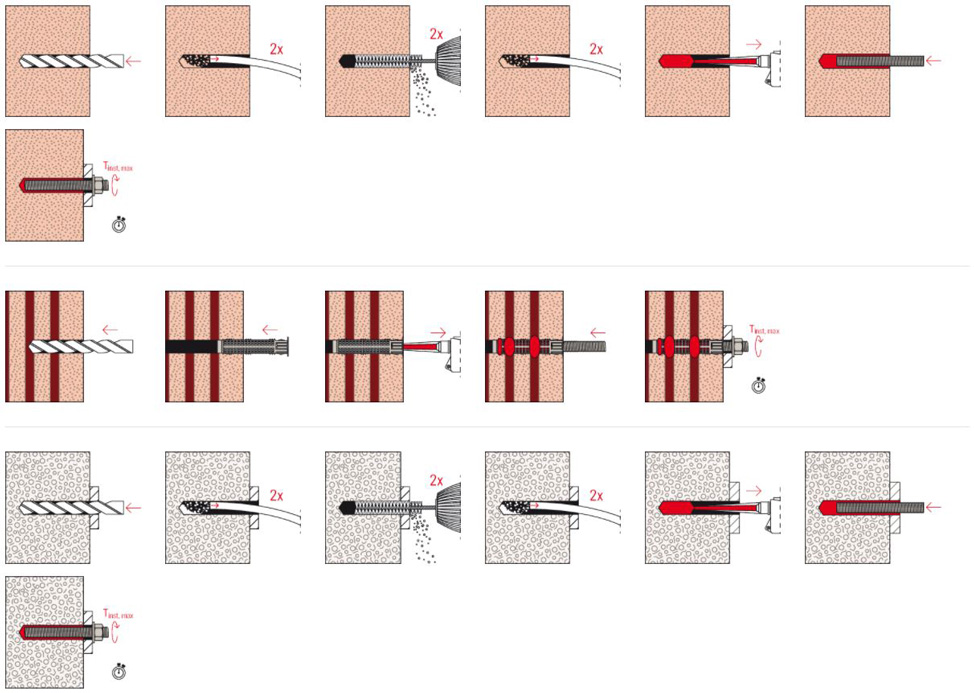

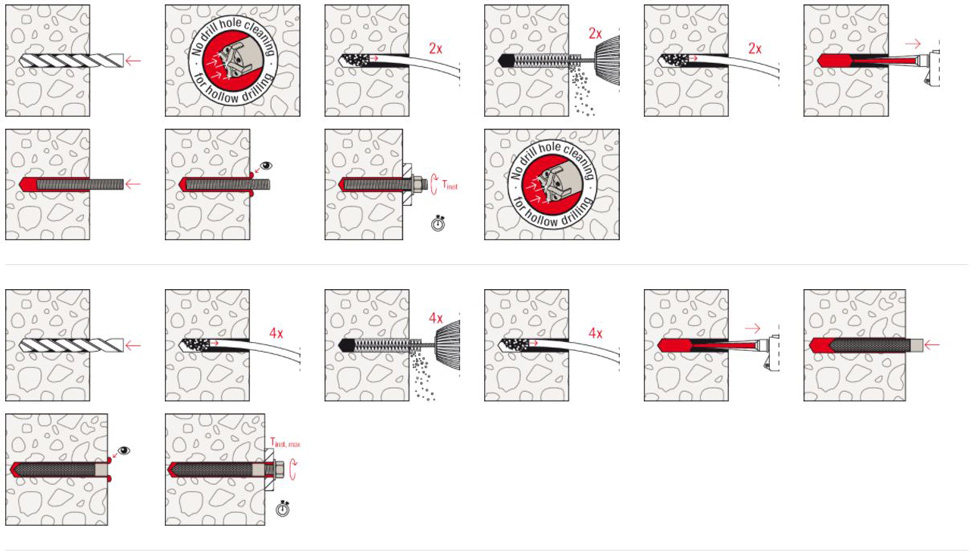

  • Assembly
  • Technical Data
  • Downloads

Description

Fischer Chemical Anchor Injection Mortar

Fischer injection mortar FIS VL 410 C. Includes – 1 cartridge 410 ml, 2 x FIS MR Plus.

The solid injection mortar for standard applications in cracked concrete and masonry.

The Fischer injection mortar FIS VL is a vinyl ester hybrid mortar with approval for fixing standard applications in cracked concrete and masonry. The FIS VL is processed with the approved system components Fischer threaded rod FIS A and Fischer internal-threaded anchor RG M I indoors and outside. The temperature resistance of the FIS VL injection mortar of -40 °C to +120 °C allows for a solid load level even when subjected to high temperature demands, thus providing great flexibility.

Advantages

  • The FIS VL is approved for use in cracked concrete and masonry, and achieves a high load-bearing capacity in these conditions
  • The injection mortar, based on vinylester resin, allows for anchorings in water-filled drill holes (410 ml cartridges only), thus allowing for rapid progress
  • The temperature resistance of the FIS VL injection mortar of -40 °C to +120 °C allows for a solid load level even when subjected to high temperature demands, thus providing great flexibility



Applications

Steelwork constructions
Timber constructions
Guard rails
Façades
Staircases
Steel brackets
Machines
Masts
Awnings
Canopies
Gates
Consoles
Pipelines
Gratings
Satellite antennas

Building Materials

Approved for anchorings in:
Concrete C20/25 to C50/60, cracked
Hollow blocks made from lightweight concrete
Vertically perforated brick
Perforated sand-lime brick
Solid sand-lime brick
Solid brick
Rebar connections
Aerated concrete
Also suitable for:
Concrete C12/15
Hollow blocks made from concrete

Permission

ETA-10/0352
ETA-15/0539, ETAG 001-5
DoP No. 0028
DoP No. 0028
DoP No. 0067
DoP No. 0067
DoP No. 0074
DoP No. 0074
DoP No. 0107
DoP No. 0107
GS 3.2/18-159-1-r1
21909_1



Functionality

  • The FIS VL is a 2-component injection mortar based on vinyl ester
  • Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the static mixer
  • The mortar is extruded bubble free from the drill hole base
  • The mortar bonds the entire surface of the anchor with the drill hole wall and seals the drill hole
  • The 410 ml coaxial cartridges can be easily used with the fischer FIS AC dispenser
  • Partially used cartridges can be reused by changing the static mixer

Fischer injection mortar

Fischer injection mortar

Technical Data

ETA-approval Yes
Contents 1 cartridge 410 ml, 2 x FIS MR Plus
GTIN (EAN-Code) 4048962269741
