Capital Eurokit Control Unit without Safety Edge

Roller door control unit
CPR5000-4591

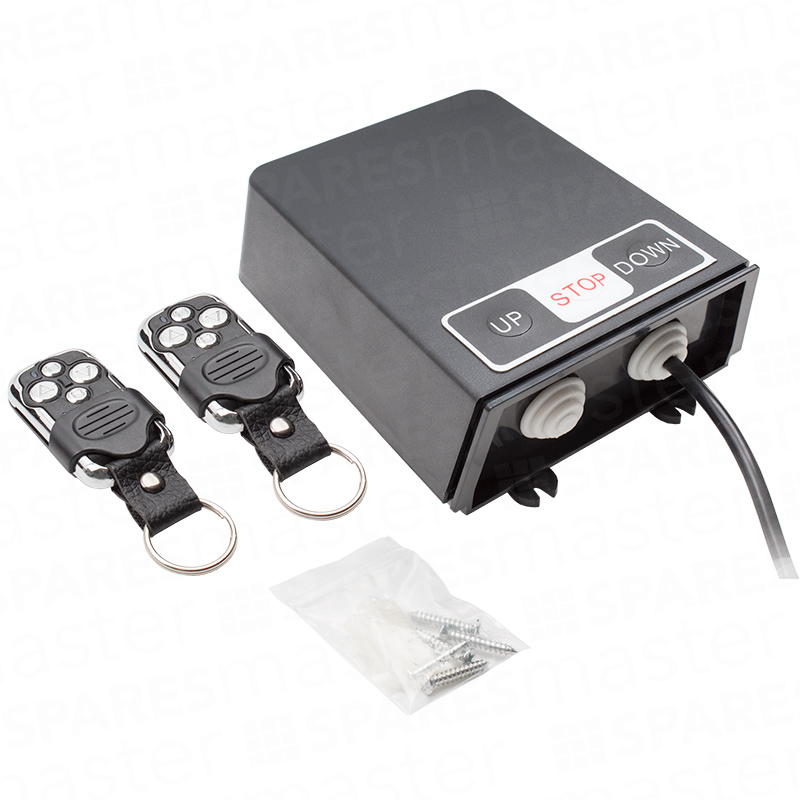

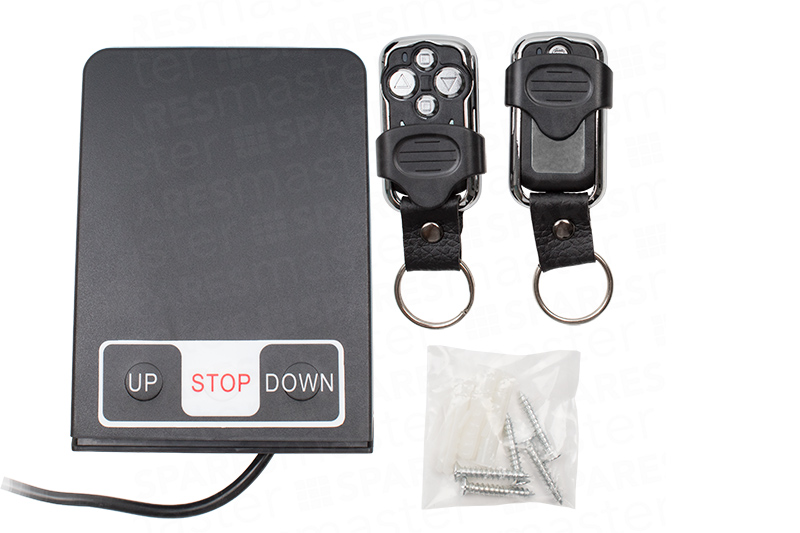

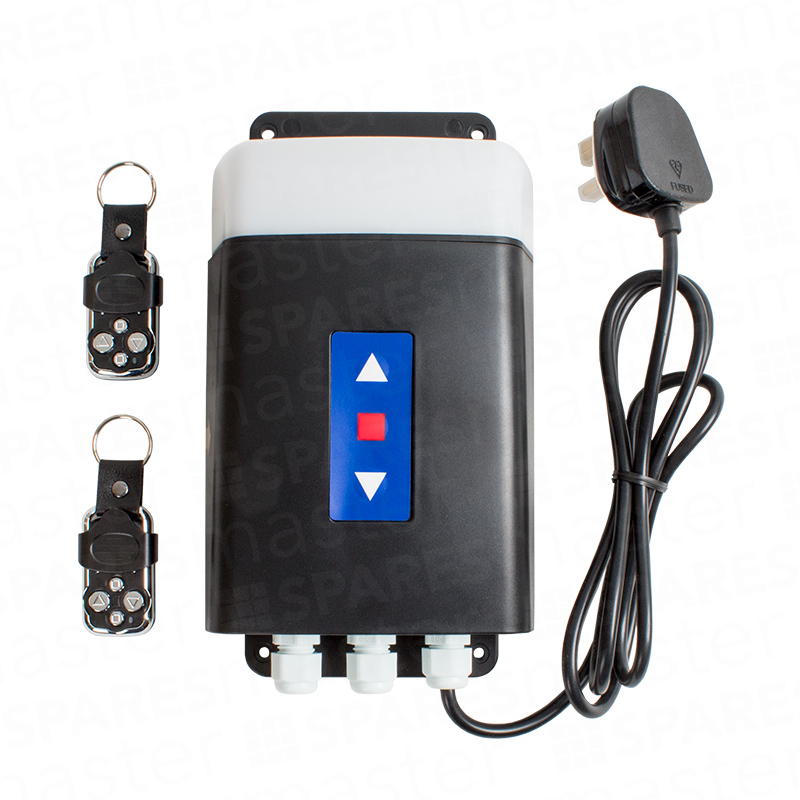

Capital Eurokit Control Unit without Safety Edge

Available

  • Description
  • Additional Information

Description

Universal Roller Door Control Unit

Capital Eurokit Control Unit without Safety Edge, includes two remotes.

Easy installation

Radio remote control unit operating on 433.92MHz

Complete with 2 x EUROFOB pre-programmed transmitters

Programmable motor run time setting option

EUROFOBs now with CR2032 batteries for longer life

Easy and secure mounting c/w with fixing screws

Panel mounted membrane up, down & stop push buttons

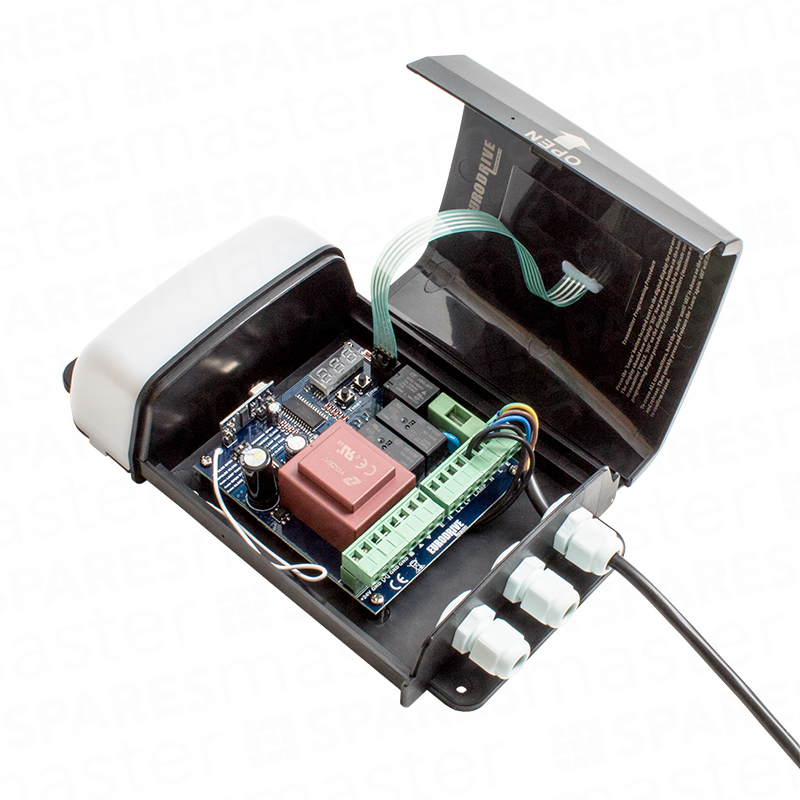

Spacious cable area c/w removable terminals

Fitted with a 1.5m pre-wired power cable and a moulded UK Plug

Stop circuit for safety brake micro switches and photocells

230v courtesy light output with adjustable time control

Low voltage control inputs for key switches, rocker switches etc

Suitable for use with all 230v/50Hz tube motors up to 360nm

60 transmitter programmable memory function

CE compliant

Can be used to replace failing PDT systems
Replacement remotes available upon request.

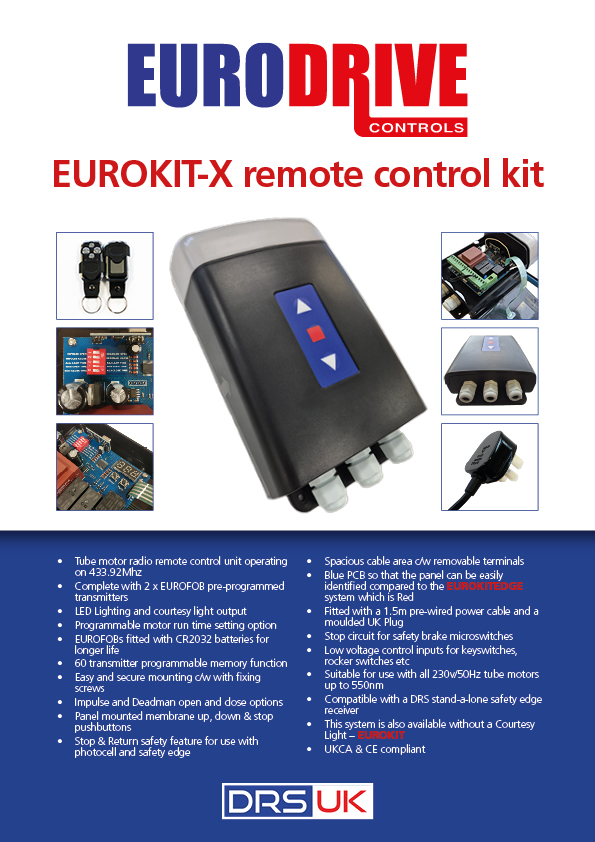

Full Installation Instructions
