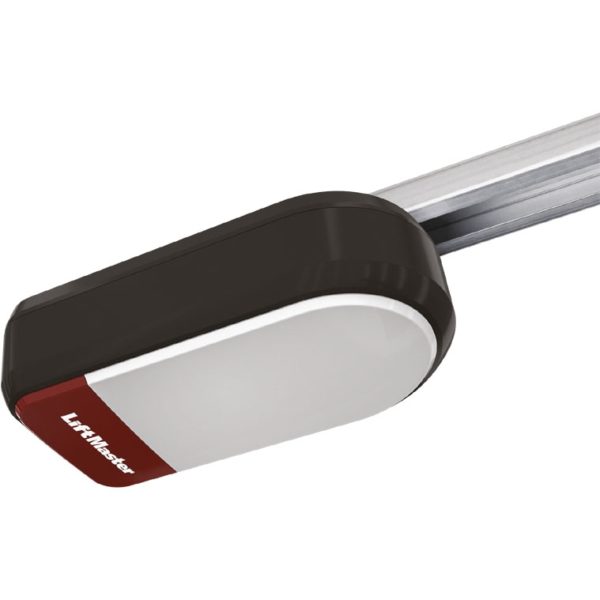

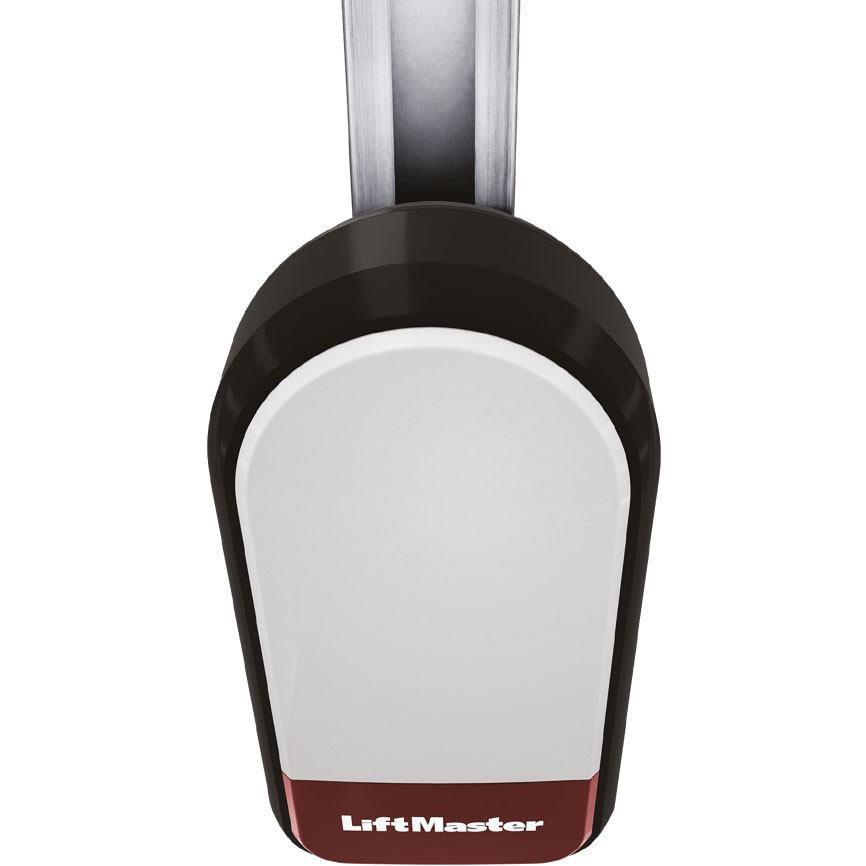

Chamberlain Liftmaster LM70EVFFC with 3 Piece Belt Rail
Push Pull Force: 700N
Max Door Weight: 110Kg
Opening Speed: 160mm/s
Includes:
- Special package: Includes MyQ Gateway, photocells and an external release device
- Two 4-button remotes
- In stock, ready to dispatch
This product is not currently available
Order Before 3pm for Next Day Delivery
Select Express Shipping at checkout
Description
Chamberlain Liftmaster LM70EVFFC with 3 Piece Belt Rail

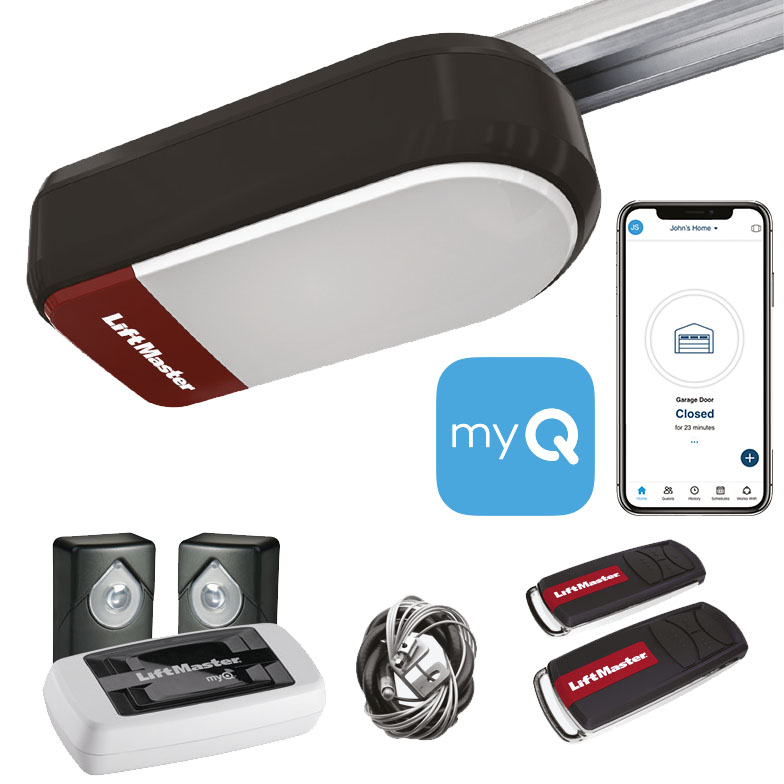

This all-in-one kit includes an array of accessories as standard at no additional cost. This kit comes complete with the 828EV MyQ gateway, TX4EVF 4-channel remote controls, 771E safety photocells, and a quick-release mechanism for secured access in the event of a power failure.
The compact garage door opener for a wide range of garage doors.
Super-quiet garage door opener including a modern, powerful LED lighting system. For garage doors with door weights up to 110 Kg. Compatible with MyQ smart-home technology.
Smart
Space-saving design opens up the ceiling. Belt drive system for powerful performance. Soft-start and soft-stop for smooth operation. MyQ mobile app lets users receive alerts and control the opener from anywhere (Internet Gateway 828EV included).Quiet & Reliable
Quiet DC motor eliminates noise and vibrations through the ceiling and provides smooth operation. Heavy-lifting power operates doors up to 110 Kg. Maintenance-free belt drive ensures quiet & durable operation. Warranty motor: 5 years, control board: 5 years, accessories: 2 years.Secure & Safe
Automatic garage door openers impede unauthorised access to the garage. Timer-to-close automatically closes the door after a preset amount of time (when safety sensors connected, 771E included). Evolution radio (security+ 2.0®) sends a new code with every remote click. Automatic force setting & obstacle detection.Downloads
Reviews
Features
|

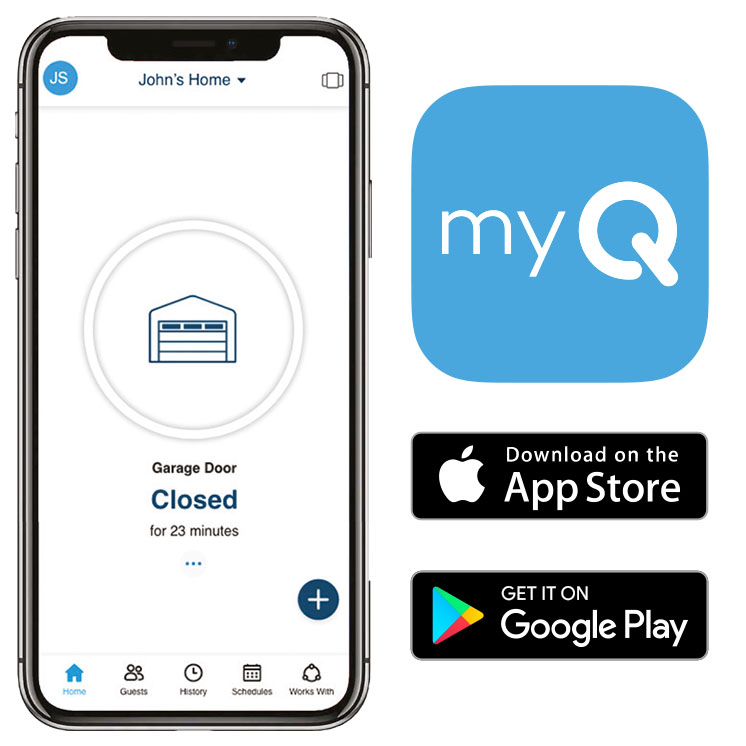

Stay connected with MyQ With MyQ, you can monitor and control your garage door, using your smartphone, tablet or computer from wherever you happen to be. |
|
Smart radio technology Evolution operators are equipped with the best reliable radio that is a bi-directional radio. They don’t only receive signal, they also sends signals back. |
|
Strength in silence The quiet operation of our garage door openers is unparalleled. |
|
High running speed
The running speed with a maximum of 200 mm/s is an important safety and comfort feature. |
 |
Up to 5 years motor warranty The long-time warranty demonstrates that LiftMaster provides premium quality products. |
|
Economic and environmentally friendly The extremely low standby energy consumption is good for the environment and your pocket. |
|
Long-lasting LEDs Immediate brightness, low CO2 emissions and avoidance of heavy metals and mercury in manufacturing. |
|
Quickly installed Simple installation with standard tools. |
Additional Technical Information
| Voltage IN | 230-240 V, 50/60 Hz |
|---|---|
| Motor voltage | 24V DC |
| Max pull force | 700 N |
| Speed | 160 mm per second |
| Soft-Start and Soft-Stop | Yes |
| Operating temperature | -30°C bis +55°C |
| Safety class | TÜV-tested to meet EN12453. For doors up to 130 Kg |
| Weight | 12 Kg |
| Stand-by power | 0,8 W |
| Drive type | Belt |
| Max door width | 5 m |
| Door height | Adjustable up to 2,5 m or up to 4 m with appropriate extension |
| Max door weight | 110 Kg |
| Headroom required | Min 35 mm |
| Lighting | LED turns on with activation, turns off 2.5 minutes after operation |
| Radio | 433 MHz + 868 MHz |
| Memory registers | 180 |
| MyQ smartphone compatible | Yes (optional Internet Gateway 828EV required) |
| Obstacle detection | Automatic |
| Force setting | Automatic |
| Over voltage protection | Transformer overload protection |
| Limit Switch | Electronic |
| Motor warranty | 5 years |
