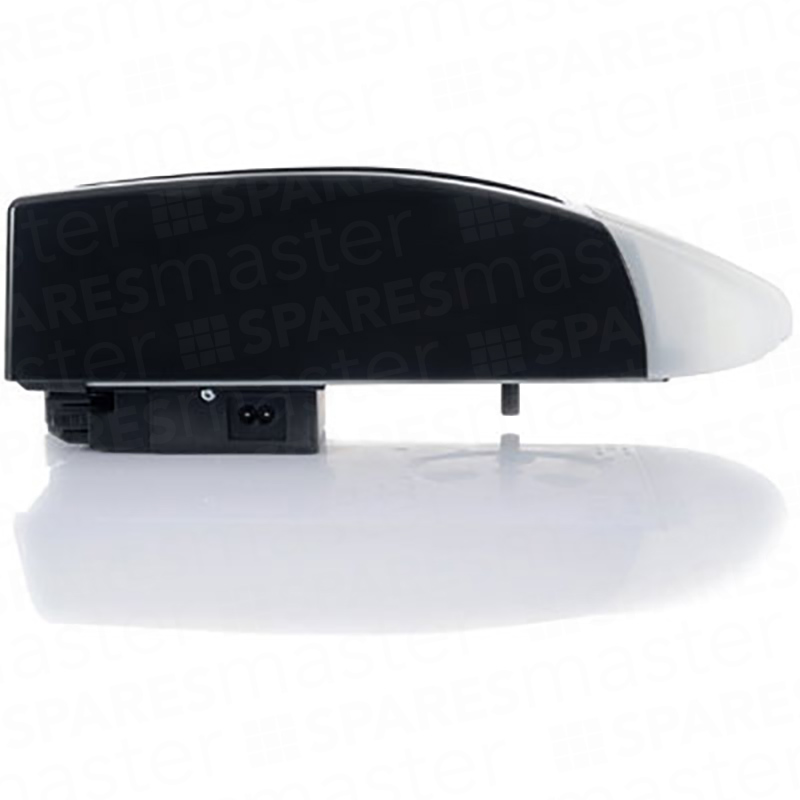

Marantec 280 Motor Head Only

Marantec garage door opener
Marantec garage door opener

Marantec 280 Motor Head Only

Garage door opener specifications:

  • Max up & over garage door width 6000 mm
  • Max sectional garage door width 6000 mm
  • Max garage door height depends on boom selected
  • Max garage door weight 200 Kg

Included:

  • Two handsets
SKU: MAO6040 Categories: , , , Tag:
  • Description
  • Features
  • Additional Technical Information

Description

Comfort 280 – Operator system for garage doors

Operator system for garage doors – domestic use

  • For up-and-over doors up to a door width of 6000 mm and a door weight of 200 Kg
  • For single-skinned sectional doors up to a door width of 6000 mm and a door weight of 200 Kg
  • For double-skinned sectional doors up to a door width of 6000 mm and a door weight of 200 Kg
  • For retractable up-and-over doors and canopy doors up to a door width of 6000 mm, a door height of 2250 mm and a door weight of 200 Kg
  • For maximum 50 complete open/close functions per day – 100 one way operations per day (corresponding to class 3 of the RAL quality mark)
  • For operator rails with roller chains, ball rope or toothed drive belts



Functions

  • Economy mode
  • Reference point technique
  • Electronic travel cut-out
  • Soft start/soft stop
  • Push-open security
  • Anti-blocking device
  • Excess travel stop
  • Release from inside
  • Connection for pushbuttons, code keypads and key switches
  • Automatic cut-out `Open` and `Close` separately programmable
  • Partial opening programmable
  • Door travel speed `Open` and `Close` separately programmable
  • Soft run position `Open` and `Close` separately programmable
  • Soft run travel speed `Open` and `Close` separately programmable
  • 3 minutes light programmable for lighting the garage
  • Automatic timer function
  • Connection potential-free limit switch information



Package

  • Motor unit Comfort 280 with multbit remote control 868 MHz
  • Digital 302 Mini hand transmitter, 2-channel
  • Digital 313 Micro hand transmitter, 3-channel
  • Universal mounting kit for up-and-over doors and sectional doors

Electrical details

  • Nominal voltage 230 V
  • Nominal frequency 50 Hz
  • Power consumption 1,1 A
  • Power input in operation 0,25 KW
  • Power input stand-by 1,7 W
  • Operation mode (duty cycle) KB 2 min.
  • Control voltage 24 V DC
  • Protection category motor unit IP 20
  • Protection class II

Mechanical details

  • Push and pull force 1000 N
  • Door travel speed 160 mm/sec.
  • Opening time (door-specific) approx. 18 sec.

General details

  • Measurements (Motor unit) 220 x 125 x 395 mm
  • Weight 4,2 kg
  • Range of temperature -20°C to +60°C
  • Illuminant LED (extendable) 40 / 80 W

Retrofitting of potential-free signal relay possible for;

  • Signal light
  • Wiping impluse
  • 3 minutes light
  • Final position message
  • Alarm system
  • Malfunction message
  • Error message
  • Reset function
