Fischer Duopower Wall Plug M10x50mm Box of 50

Fischer Duopower 10×50
Fischer Duopower wall plugs
Fischer Duopower wall plugs

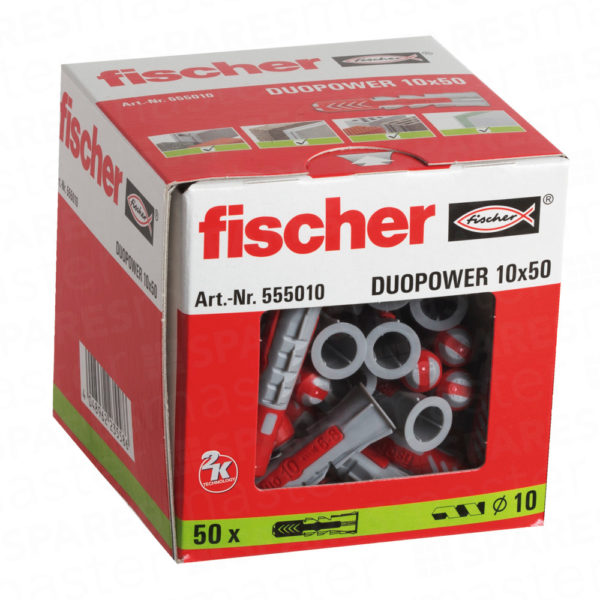

Fischer Duopower Wall Plug M10x50mm Box of 50

Top Features

  • Combination of two material components for more performance
  • Secure functions for solid (expansion) and hollow and panel building materials (folding/knotting)
  • Easy installation: narrow edge of the plug prevents it from falling deeper into the drill hole
  • Best possible feedback from the anchor – you can feel that the anchor is sitting perfectly
  • Description
  • Application
  • Assembly
  • Technical Data

Description

Fischer Duopower Wall Plug M10x50mm Box of 50

DUOPOWER

The duo of power and intelligence

The fischer DUOPOWER offers very good hold values as a result of its 2 components: Depending on the building material, the grey components made from high quality nylon automatically activates the optimum product function (expansion, folding, knotting) for the best hold. The expansion wings of the red component support the secure expansion and offer additional security to the grey component. Easy screwing-in of the screw and correct “tightening” to close. No over-tightening of the screw. The preshaped edge on the plug head prevents the plug from slipping into the drill hole.

Advantages

  • Two component materials for top load values and intelligent functioning depending on the substrate
  • Great feedback (feel-good factor) of the plug. You can feel exactly when the plug is installed perfectly
  • The narrow plug rim prevents slipping into the drill hole
  • The serrated anti-rotation feature prevents rotation in the drill hole during installation

Intelligent self-activating functioning depending on the substrate. For a wide range of applications.

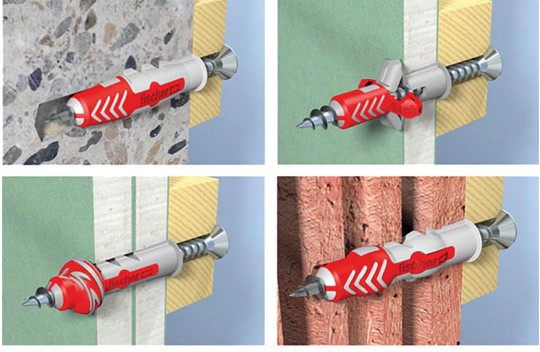

Fischer Duopower wall plugs application

Applications
TV consoles
Lighting
Shelves
Mirror cabinets
Letter boxes
Pictures
Fixing blinds
Curtain rails
Wash basin fixings
Plumbing and heating fixings
Bath and toilet installations
Wall cabinets
Range hood
Building Materials
Concrete
Solid brick
Solid sand-lime brick
Aerated concrete
Vertically perforated brick
Perforated sand-lime brick
Plasterboard
Gypsum plasterboard and gypsum fibreboards
Hollow blocks made from lightweight concrete
Cavity floor slabs made from bricks and concrete or similar
Natural stone
Chipboard
Solid panel made from gypsum
Solid brick made from lightweight concrete



Functionality

  • The DUOPOWER is suitable for pre-positioned and push-through installation
  • The duo of two different materials and its multiple functional abilities (expanding, folding, and knotting) extend the range of applications to additional materials with top loads

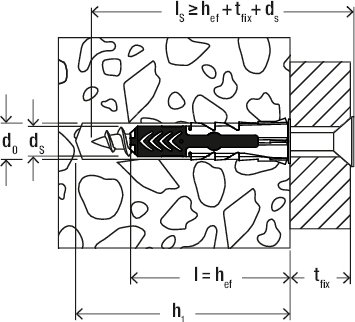

  • The required screw length is given by the plug length + fixture thickness + 1x the screw diameter
  • Suitable for wood and chipboard screws, as well as stud screws
  • In the case of fixing boards, the threadless part of the screw must not be longer than the fixture

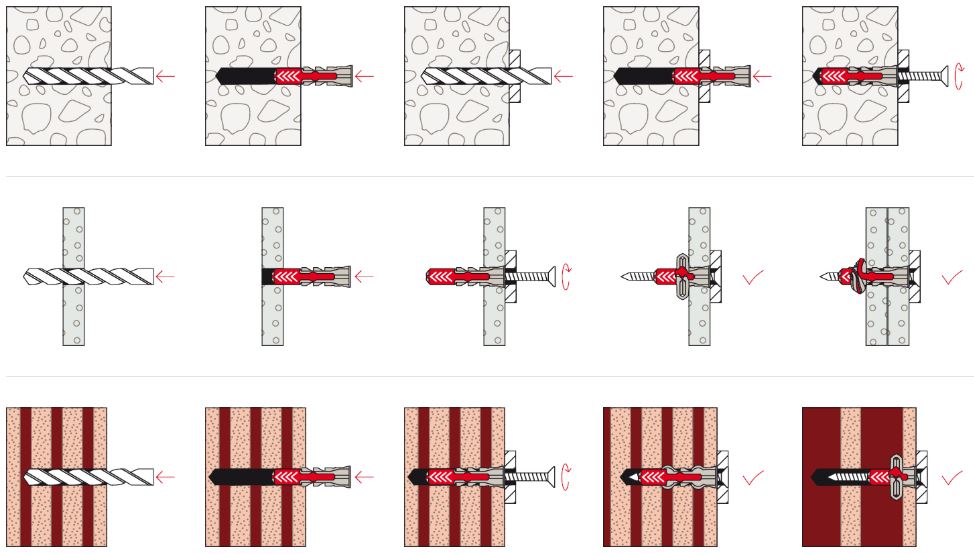

Fischer Duopower fixing

Drill diameter 10mm
Min. drill hole depth 70mm
Min. panel thickness 12.5mm
Anchor length 50mm
Min. bolt penetration 58mm
Amount 50 units
Packaging Folding box

Fischer Duopower fixing

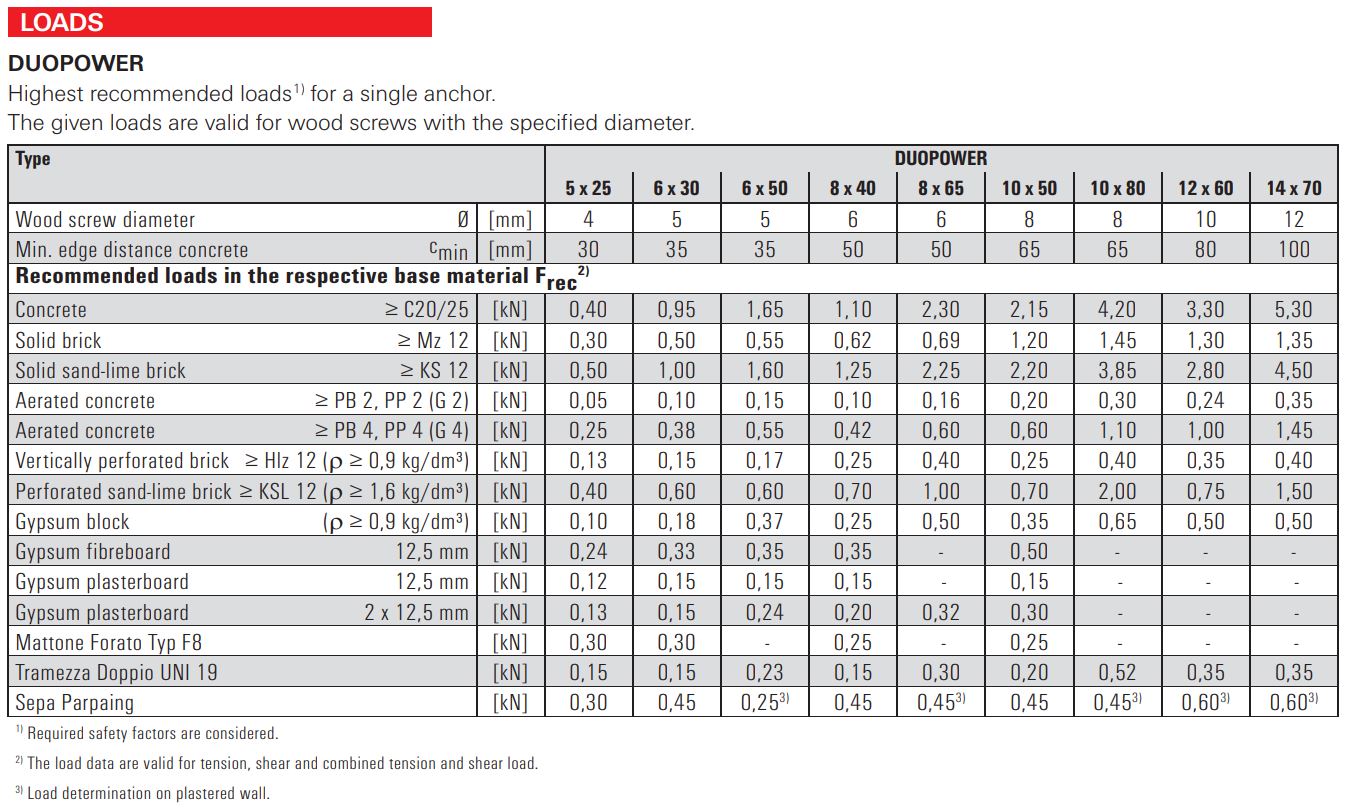

Fischer Duopower loads
