Somfy CSI60 Sirius Tubular Motor
Somfy Tubular Motors.
- In stock, ready to dispatch
Availability: In stock
Order Before 3pm for Next Day Delivery
Select Express Shipping at checkout
Description

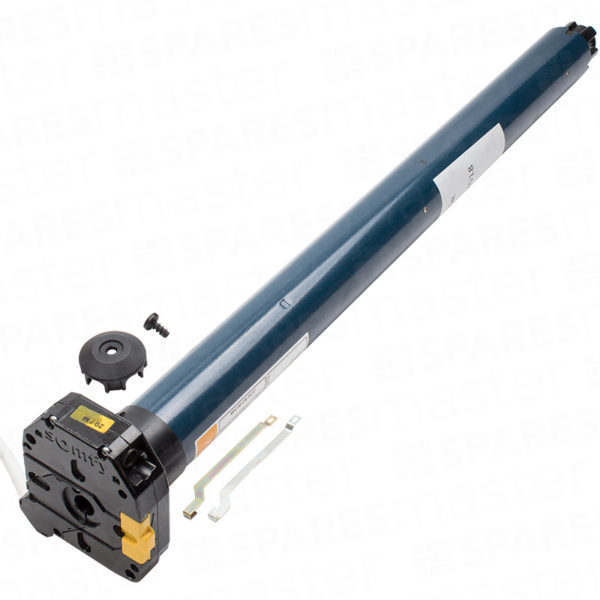

Somfy CSI60 Sirius 80/12 Tubular Motor
Wired Ø60 mm motor with manual override and rapid adjustment settings, to be able to operate rolling shutters or rolling garage doors when there is no net power.
- Tubular motor 230 V/50 Hz.
- Advantage over standard LT series is the built-in manual override. In the event of a power failure, the rolling shutter can still be used.
- Transmission 27:1 for RDO 50/CSI and 55:1 for RDO 60/CSI.
- The motor can be mounted directly on the side plate of the shutter.
- RDO 50/CSI fits in a tube with a minimum inner diameter of 47 mm. For RDO 60/CSI, this is 60 mm.
- Capacity of the final adjustment on both: 34 revolutions.
- Supplied as standard with a white 4-core (VVF) cable, length 2.5 m, unless stated otherwise.
- Can be used with all Somfy controls.
- Not suitable for continuous use.
Downloads
Specifications
Technical information
-
- Protection Index
- IP 44
- Insulation class
- Class I
- Protection Index
Dimensions
-
- Unwrapped product weight: 4.93 kg
- Unwrapped length: 646 mm
- Unwrapped width: 90 mm
- Unwrapped height: 100 mm
- Minimum internal diameter: 60 mm
- External Diameter: 58 mm
- Diameter: 60 mm
- Riveting position distance: 630 mm
Electric
-
- Consumption during operation: 290 W
- Consumption in standby mode: 0 W
- Minimum voltage: 207 V
- Maximum voltage: 244 V
- Rated current: 1.25 A
- Power supply: AC – RGE 1 – 230V/50HZ
Mechanical
-
- Internal manual declutching option: Yes
- External manual declutching option: Yes
- Speed: 12 rpm
- Torque: 80 Nm
- Type of limit switch unit: Mechanical
- Capacity of the limit switch unit (turns): 34
- Power scale: AC MOTOR MULTI PHASE 37,5W TO 750W
- Repeatability: < +/- 5
- Head type: CMO
- Thermal tripping: 130 °C
Cable
-
- Cable type: VVF
- Removable cable: Yes
- Cable length: 2.5 m
- Cable colour: WHITE
- Number of wires of the cable: 4
- Cable plug ends: STRIPPED
- Wire section: 0.75 mm²
Other
-
- Minimum working temperature: -25 °C
- Maximum working temperature: 70 °C
- Minimum storing temperature: -20 °C
- Maximum storing temperature: 80 °C
- Thermical time: 4 min
- Noise level (dB): 65 dB
Reviews
Why Somfy?
The benefits of a Somfy garage door motor:
Gentle and impact-free operation – Somfy motor ensures the smooth opening and closing of the garage door every time, extending your door’s lifetime.
Partial opening – This opening option makes it easy to allow pedestrians and bikes through, without the need to fully open your garage door.
Automatic obstacle detection – The motor will automatically stop the garage door when it detects an obstacle in the way, protecting your family and property from harm.
Automatic closure programming – Set the garage door to close automatically after a set amount of time.
